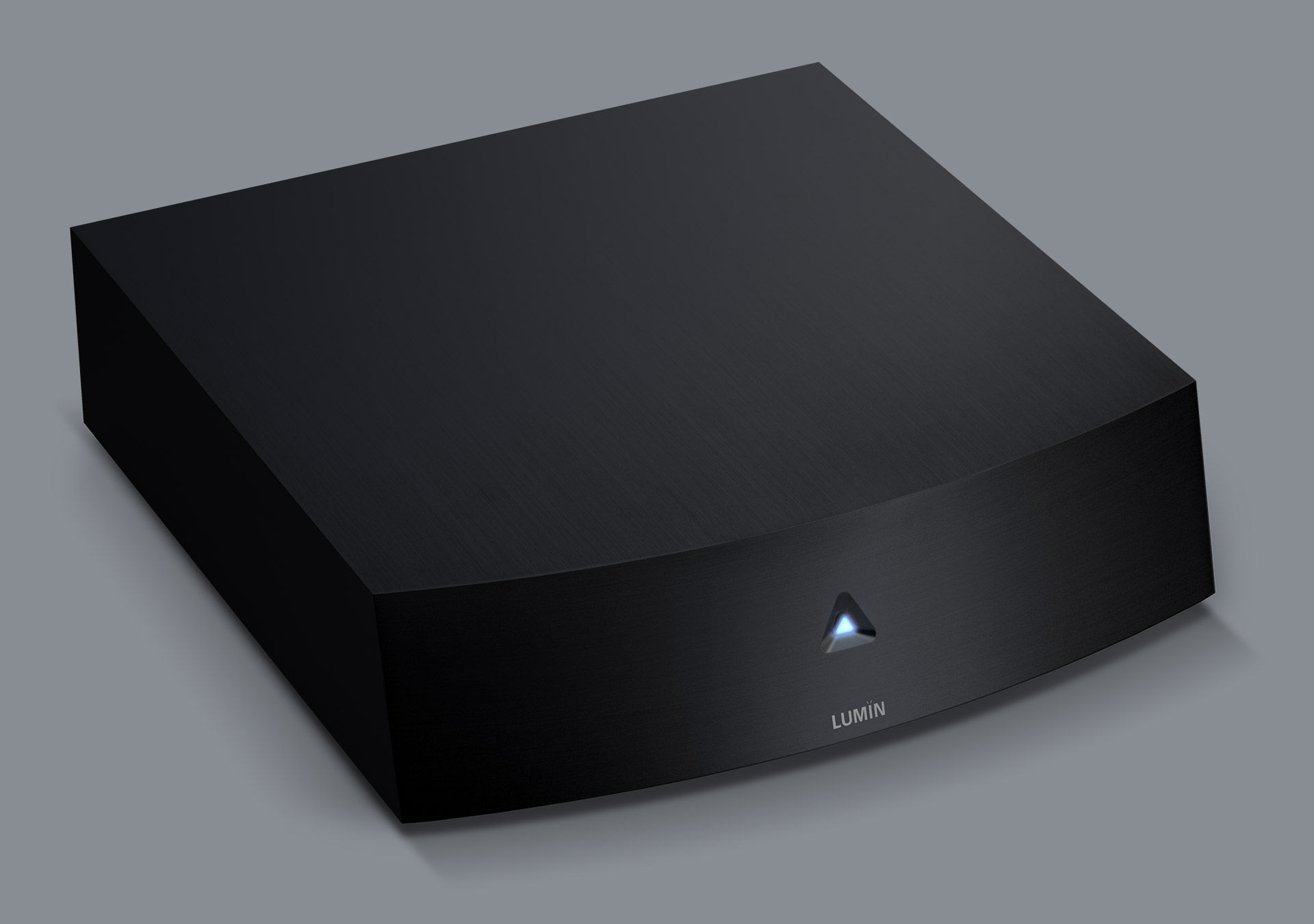

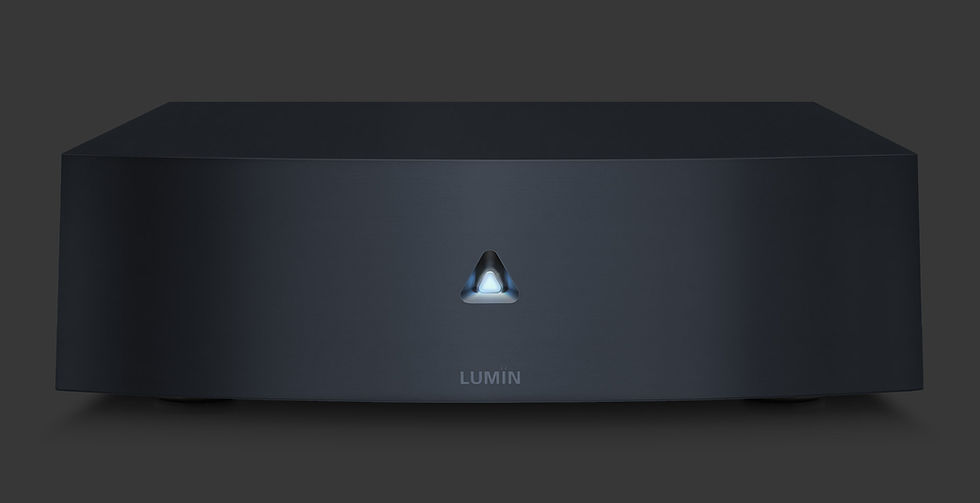

Lumin Amp Stereo Amplifier

Lumin Amp Stereo Amplifier

Featuring everything you need and nothing you don't, LUMIN Amp focuses purely on performance. If your LUMIN streamer sounded like a breath of fresh air, prepare to take it to the next level.





Matched styling.  Unmatched performance.

  • Multi-Stage transistors amplifier
  • Dual Mono power supply and amplifier design
  • Fully discrete voltage and current gain stages
  • DC-coupled signal path
  • Class AB operation
  • High input impedence and sensitivty for direct DAC drive
  • Intelligent bias and thermal management
  • Stereo / Dual Mono / Bridged operation
  • CNC single billet aluminium construction
  • 600VA custom toroidal transformer
  • Built-in overload, overheat and DC protection





Specification:

OPERATING MODE: (selectable)

  • Stereo, Dual Mono or Bridged mode



INPUT: (selectable)

  • 1 x XLR pair (pin 2 hot), 1 x RCA pair



POWER:

  • 160W per channel into 8Ω
  • 320W per channel into 4Ω
  • 640W into 8Ω (Bridged)



POWER SUPPLY:

  • Available in 220–240V AC and 110–120V AC versions ~ 50/60Hz



POWER CONSUMPTION:

  • Standby <0.5W
  • Idle 40W
  • Max 700W



FREQUENCY RESPONSE:

  • 20hz - 40000hz ± 0.1db



SIGNAL TO NOISE RATIO:

  • 103db, unweighted



INPUT IMPEDANCE:

  • 200kΩ Balanced (XLR)
  • 100kΩ Unbalanced (RCA)



OUTPUT IMPEDANCE:

  • 0.1Ω



INPUT SENSITIVITY:

  • 1.16Vrms



GAIN:

  • +26dB (Stereo, Dual Mono)
  • +32dB (Bridged)



PROTECTION:

  • DC, overload and overheating protection



FINISHES:

  • Black anodized brushed aluminium or Raw brushed aluminium



CONSTRUCTION:

  • CNC-machined from a single billet for front, top and sides. Thick 8mm walls, rear panel and base plate



DIMENSIONS:

  • 350mm (W), 374mm (D), 104mm (H)



WEIGHT:

  • 19kg
    $11,990.00Price
