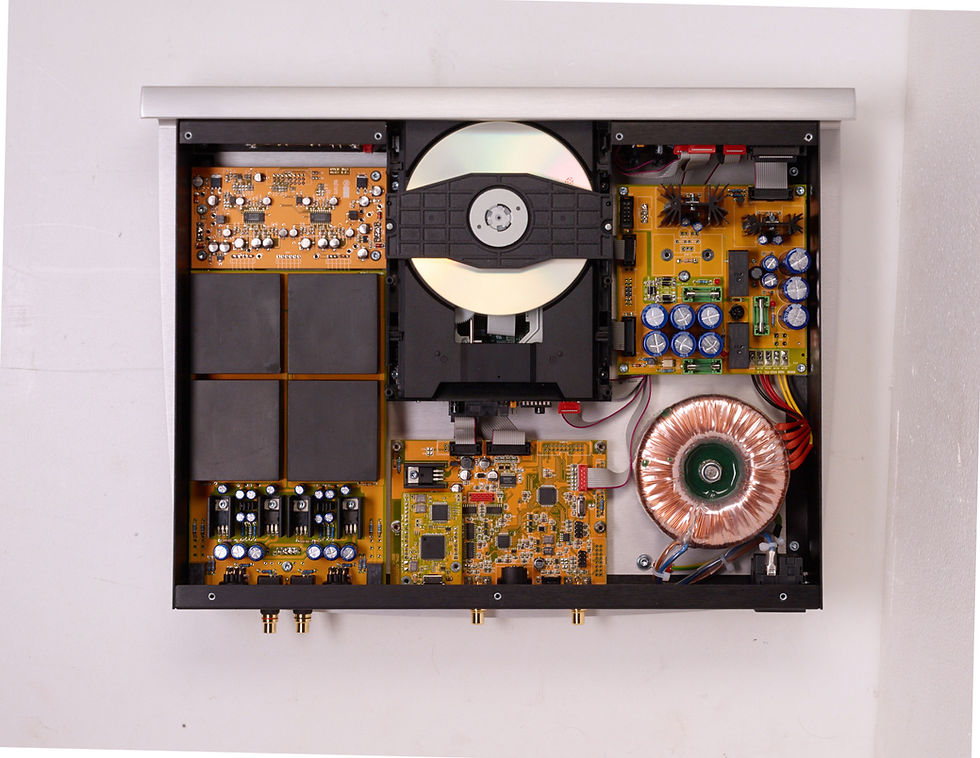

Norma Revo DS-1 CD Player/DAC

Norma Revo DS-1 CD Player/DAC

NORMA is pleased to present the new REVO DS1 Digital Source. It is an extremely interesting product, both for its outstanding technical content and for its noticeable versatility, obviously combined with the rigor of NORMA musical tradition. In addition to a CD player section that represents the evolution of the REVO CDP1R, the NORMA REVO DS-1 source offers a complete set of digital inputs. As a matter of fact, there is both a full bandwidth USB input (192.0 KHz) as well as 4 SPDIF inputs, coaxial, optical and XLR. Therefore, all the features for an advanced digital source are contained within a single frame, and they are able to meet even the most demanding user’s needs with no limitations, both in terms of versatility as well as of listening quality. The same conversion section and the same output stages that made the REVO CDP1R unique, famous and appreciated, are used in REVO DS-1 enabling it to reach top world production levels as the quality of sound reproduction.





SPECIFICATIONS:



Connections Inputs :

  • IN1 : USB, 2.0 High Speed
  • IN2 : SPDIF RCA, 75Ohms
  • IN3 : AES/EBU XLR, 110Ohms
  • IN4 : TOSLINK OPTICAL, 96 KHz, (192.0 KHz may be achieved, but not guaranteed)
  • IN5 : SPDIF RCA, 75Ohms (IN5 can be set as SPDIF Output by CD Mechanism)
  • Sampling Frequencies: 44.1KHz, 88.2KHz, 176.4KHz, 48.0KHz, 96.0KHz, 192.0KHz
  • UpSampler Frequencies: 44.1KHz, 88.2KHz, 176.4KHz, 48.0KHz, 96.0KHz, 192.0KHz, AUTO MODE
  • Based on TI SRC4392
  • Clock performances: +/- 2ppm typ. at 25°, +/- 10ppm at 60°
  • Digital Filter: Slow & Sharp mode, based on TI DF1706
  • De-emphasis: 44.1KHz, 48.0KHz, auto e manual mode
  • Outputs: Line RCA output, XLR Balanced
  • Outputs Voltage: 3.0 V RMS (+10 dBV) RCA (at 0 dB), 6.0 V RMS (+16 dBV) XLR(at 0 dB)
  • Output Impedance: 200 ohm
  • System Frequency Response (CD Mode): 0,0 to 22KHz +/- 0,3 dB (limited from CD standard)
  • Analogue Output Filter: 0,0 to 180 kHz +/- 3 dB
  • Analogue Stage Frequency Response: 0,0 to 2MHz +/- 3 dB
  • Configuration: Solid state
  • Oversampling: DF 1706 8 x Digital Filter
  • Oversampling Filter: User selectable Sharp & Slow Roll-off filter response.
  • D/A Converter: PCM 1704 Multibit 24 Bit D/A converter
  • Supply: 230 V AC / 50 Hz, (100V AC or 115 VAC / 50-60Hz in some country)
  • Dimensions (HxWxD): 75 x 430 x 350 mm
  • Weight: 10 Kg
    $6,000.00Price
